Wiring Schematic for Olympic Bunker and Skeet

Please note, all measurements are in METERS.

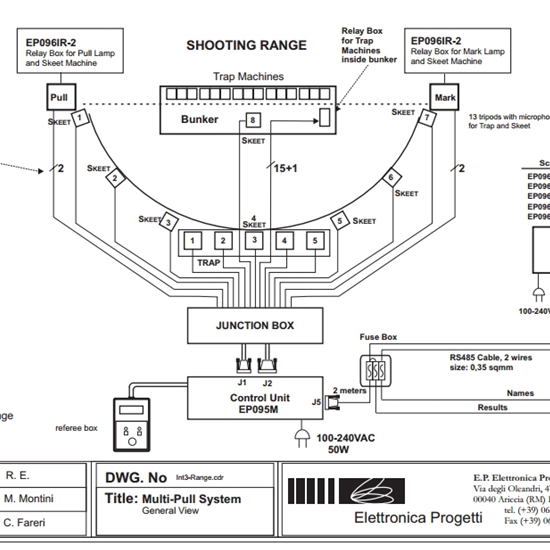

General View
Interconnection for Bunker Mattarelli Trap
Interconnection for Skeet Lamp and Traps
Trap and Skeet Range Junction Box Interconnection
Microphone Shooting Range Interconnection
General View Ducts and Manhole
Control Room and Hall Interconnection
Scoreboard Interconnection
Cable Length
